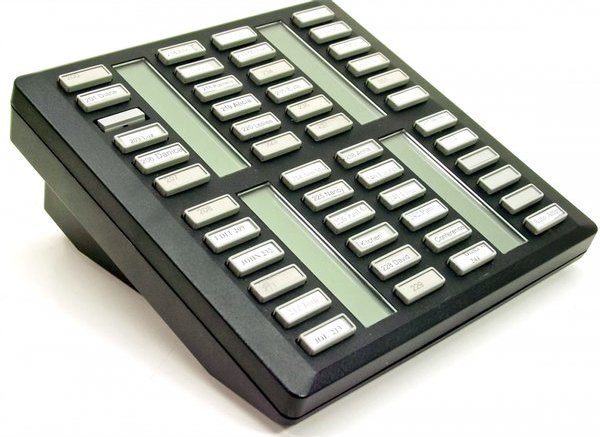

Nortel Central Answering Position (CAP) Features
Central Answering Position (CAP) has 48 programmable buttons with LCD indication
(2) CAPs can be added to the M7324 telephone, providing a maximum total of 120 programmable buttons
Requires Station Auxiliary Power Supply (SAPS)
Generic Norstar Station Auxiliary Power Supply – SAPS (NT8B60)pad
The Station Auxiliary Power Supply extends the loop length from 1,000 to 2,600 ft. between a Norstar set or terminal and the Norstar system using a dedicated cable to connect the two locations
One SAPS powers up to 3 sets at 2,600 ft. or 2 CAP/KLM (which do not have to be connected to the same M7324 set) at 1,000 ft.
